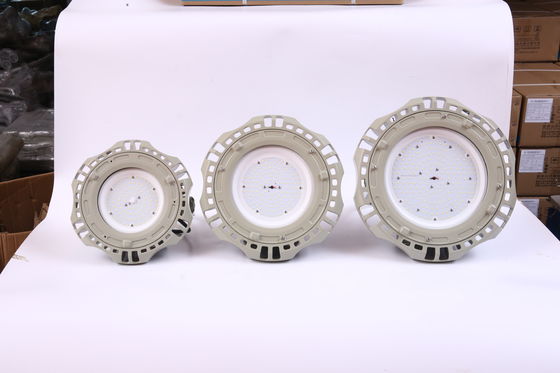

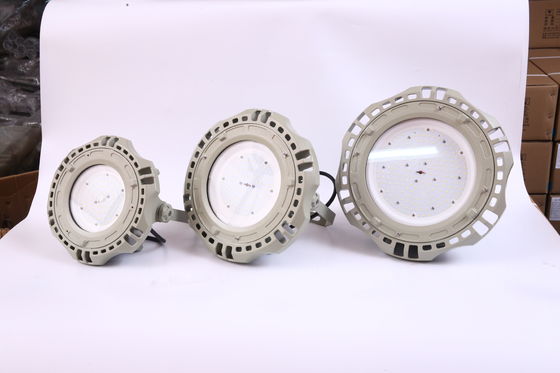

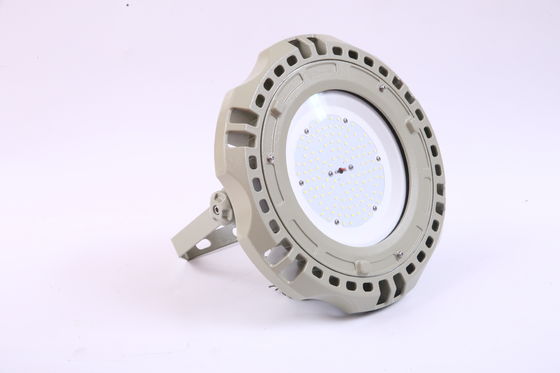

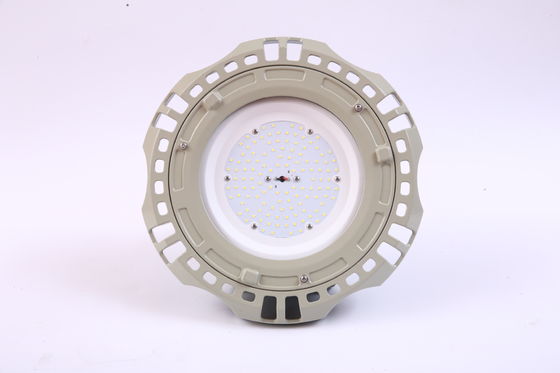

100W 150W 200W Explosion Proof Atex Lamp Led High Bay Light IP66 Waterproof And Dustproof

Bescheinigung
CHINA crown extra lighting co. ltd zertifizierungen
CHINA crown extra lighting co. ltd zertifizierungen
Ich bin online Chat Jetzt

100W 150W 200W Explosion Proof Atex Lamp Led High Bay Light IP66 Waterproof And Dustproof

100W 150W 200W Explosion Proof Atex Lamp Led High Bay Light IP66 Waterproof And Dustproof
100W 150W 200W Explosion Proof Atex Lamp Led High Bay Light IP66 Waterproof And Dustproof 100W 150W 200W Explosion Proof Atex Lamp Led High Bay Light IP66 Waterproof And Dustproof 100W 150W 200W Explosion Proof Atex Lamp Led High Bay Light IP66 Waterproof And Dustproof 100W 150W 200W Explosion Proof Atex Lamp Led High Bay Light IP66 Waterproof And Dustproof 100W 150W 200W Explosion Proof Atex Lamp Led High Bay Light IP66 Waterproof And Dustproof

Großes Bild :  100W 150W 200W Explosion Proof Atex Lamp Led High Bay Light IP66 Waterproof And Dustproof

Produktdetails:
Herkunftsort: Jiangsu, China
Markenname: Crown Extra
Zertifizierung: ATEX,CE,ROHS,CNEX,ISO9001
Modellnummer: GYD620
Zahlung und Versand AGB:
Min Bestellmenge: 1pc
Preis: USD57-158per pc
Verpackung Informationen: Karton 、 Holzkiste 、 Palette
Lieferzeit: 15 Arbeitstage
Zahlungsbedingungen: T/t
Versorgungsmaterial-Fähigkeit: 50000pcs/Monat

100W 150W 200W Explosion Proof Atex Lamp Led High Bay Light IP66 Waterproof And Dustproof

Beschreibung
Marke: Krone extra Produktname: Explosionssichere Höhenleuchten/GYD620
Modell: GYD620 Stromspannung: AC 100-277V, 50 Hz/60 Hz: 24/36VDC
Effizienz: 135lm/w Cri: RA: ≥80
CCt: 3000/4000/5000/5700K Zertifiziert: CNEX, Ex, IP66, IEC, IECEX
Montage: Klammer, Flanschhalterung, Wandhalterung
Hervorheben:

Explosion Proof LED High Bay Light

,

200W Atex Lamp IP66 Waterproof

,

Dustproof High Bay Light with Warranty

Hot Selling 100W 150W 200W Explosion Proof Atex Lamp Led High Bay Light IP66 waterproof and dustproof





Features:

1. Zone 1&2, Zone 21&22
2. Instant on crisp white light output
3. High efficiency drivers and LEDs provide Low cost operation in harsh andheavyindustrial applications

4. Isolated LED compartment reducestemperature within driver housing

5. Multi choice of beamangle for 60° 90° 120°







Applications

Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Other high humidity, high dust, high temperature, vapor locations



Standard Materials
Housing: Die-casting aluminum
Exterior: Stainless steel
Globe: Tempered glass
Gasket: Silicon rubber



Certifications
ATEX
CNEX
CE
RoHS
ISO9001






100W 150W 200W Explosion Proof Atex Lamp Led High Bay Light IP66 Waterproof And Dustproof 0





For use in Zone 1, 2 & Zone 21, 22
Rated voltage 100-277VAC, 50-60Hz
Power factor >0.95
THD <20%
Power consumption [W] 50-100w, 120-150w,150-200w,240w
Colour rendering [CRI] 70 (±2)
Colour temperature [K] 6000-6500
Luminaire efficiency[Lm/W] 125-130
Beam angle 120° (45°, 90° is optional)
Degree of protection IP66
Cable entry G 3/4”
Weight [kg] 5.25,6.85,8.6,10.25
Terminal ≤2.5 mm²
Mounting Styles Ceiling; Wall Bracket; Pendant





100W 150W 200W Explosion Proof Atex Lamp Led High Bay Light IP66 Waterproof And Dustproof 1

100W 150W 200W Explosion Proof Atex Lamp Led High Bay Light IP66 Waterproof And Dustproof 2



Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.





100W 150W 200W Explosion Proof Atex Lamp Led High Bay Light IP66 Waterproof And Dustproof 3
