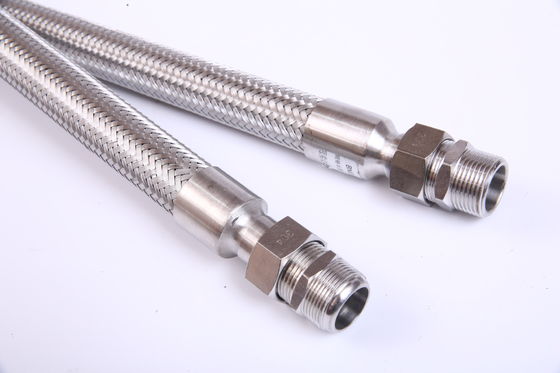

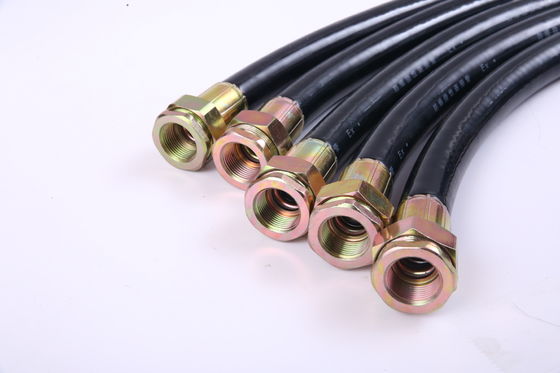

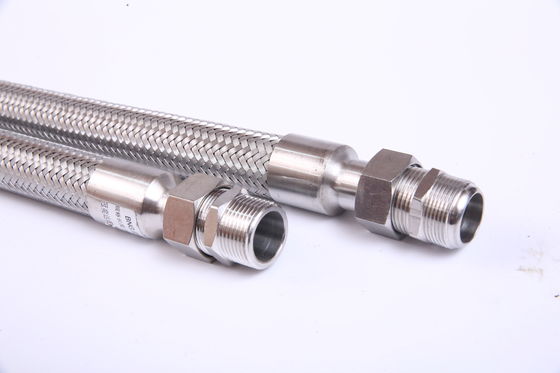

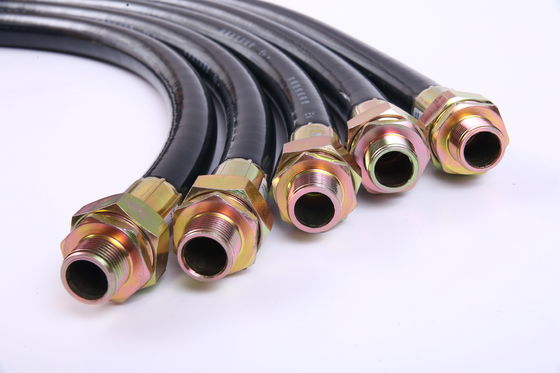

IP54 Explosion Proof Flexible Conduit Factory Price Braided Rubber Flexible Electrical Pipe Fittings

Bescheinigung
CHINA crown extra lighting co. ltd zertifizierungen
CHINA crown extra lighting co. ltd zertifizierungen
Ich bin online Chat Jetzt

IP54 Explosion Proof Flexible Conduit Factory Price Braided Rubber Flexible Electrical Pipe Fittings

IP54 Explosion Proof Flexible Conduit Factory Price Braided Rubber Flexible Electrical Pipe Fittings
IP54 Explosion Proof Flexible Conduit Factory Price Braided Rubber Flexible Electrical Pipe Fittings IP54 Explosion Proof Flexible Conduit Factory Price Braided Rubber Flexible Electrical Pipe Fittings IP54 Explosion Proof Flexible Conduit Factory Price Braided Rubber Flexible Electrical Pipe Fittings IP54 Explosion Proof Flexible Conduit Factory Price Braided Rubber Flexible Electrical Pipe Fittings

Großes Bild :  IP54 Explosion Proof Flexible Conduit Factory Price Braided Rubber Flexible Electrical Pipe Fittings

Produktdetails:
Herkunftsort: Jiangsu, China
Markenname: Crown Extra
Zertifizierung: ATEX,CE,ROHS,CNEX,ISO9001
Modellnummer: BNG
Zahlung und Versand AGB:
Min Bestellmenge: 1pc
Preis: USD1-18per pc
Verpackung Informationen: Karton 、 Holzkiste 、 Palette
Lieferzeit: 15 Arbeitstage
Zahlungsbedingungen: T/t
Versorgungsmaterial-Fähigkeit: 50000pcs/Monat

IP54 Explosion Proof Flexible Conduit Factory Price Braided Rubber Flexible Electrical Pipe Fittings

Beschreibung
Produktname: Explosionssichere flexible Leitung Modell: BNG
Ex Mark: Ex eb IIC Gb Schutz: IP54, WF1
Größe: G1/2', G3/4', G1', G1.1/2', G2

IP54 Explosion Proof Flexible Conduit Factory Price Braided Rubber Flexible Electrical Pipe Fittings





BNG Series

IP54 Explosion Proof Flexible Conduit Factory Price Braided Rubber Flexible Electrical Pipe Fittings 0

Applications

1. The exterior is made of 304 stainless steel, IP65 grade anti-corrosion engineering rubber and stainless steel wire weaving materials, which are waterproof, explosion-proof, anti-corrosion and dust-proof. The bushing is made of stainless steel or carbon steel.
2. It can be bent arbitrarily, with strong tensile performance and easy installation
3. Heighten and thicken stainless steel joints. High-strength protection
4. The connection is deepened with threads, which will not fall off and will not slip easily.
5. The stainless steel flexible tube adopts a precision braided shell to protect the cable from aging and water seepage.
6. Can be used in hazardous locations of zone 0&1&2 and zone 20&21&22

7.

Degree of protection IP65 and the types of connectors are complete.


Customized

1. Rubber plastic, steel net and stainless steel net is optional
2. The thread could be specially made upon request,such as NPT, G thread.
3. The length of the flexible conduit can be specially made upon request.





Technical Parameters
Explosion-proof mark: Ex d IIC Gb DIP A20
IP Degree: IP65
Waterproof Degree: WF2
The Bushings of the Flexible tubes can be choose inner Bushings outer,Bushings, or threaded plugs

Mark:
The tube size can be replaced by 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, 70mm, 80mm, 100mm etcThe tube thread can be replaced by G1/2", G3/4", G1" G1 1/4", G1 1/2", G2“ G2 1/2", G3" G4" etc
The minimum bending radius can be replaced by 80mm, 110mm, 145mm, 180mm, 210mm, 250mm, 350mm, 400mm, 500mm etc

IP54 Explosion Proof Flexible Conduit Factory Price Braided Rubber Flexible Electrical Pipe Fittings 1
Details Images
1.Good toughness, easy to bend and not easy to break.
IP54 Explosion Proof Flexible Conduit Factory Price Braided Rubber Flexible Electrical Pipe Fittings 2

2.Carbon steel joints, surface electroplating treatment, anti-corrosion; threaded connection, good airtightness, and anti-protection function.
IP54 Explosion Proof Flexible Conduit Factory Price Braided Rubber Flexible Electrical Pipe Fittings 3

3.Various lengths, various models, and various connectors can be selected.

4.Efficient waterproof performance, can also be installed and used outdoors.



Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.

IP54 Explosion Proof Flexible Conduit Factory Price Braided Rubber Flexible Electrical Pipe Fittings 4
