Features:
1. Die casting aluminum shell, with high voltage electrostatic plastic-spraysurface.
2. Easy to change the tube, just remove the end cover to change.
3. Electronic ballast, improve the power factor largely, COS>0.95
4. Tempered glass lamp shade, stainless steel exposed fastener.
5. Steel pipe wiring or cable wiring

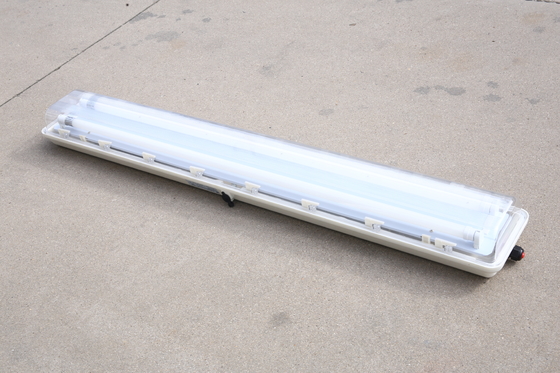

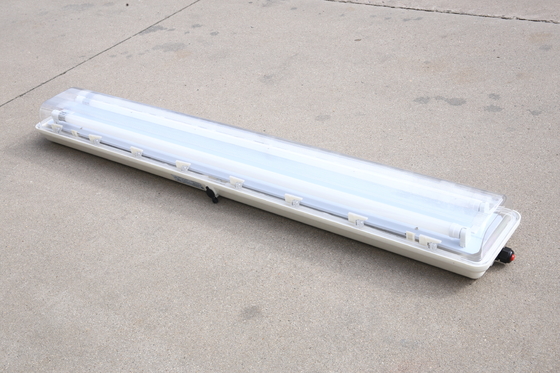

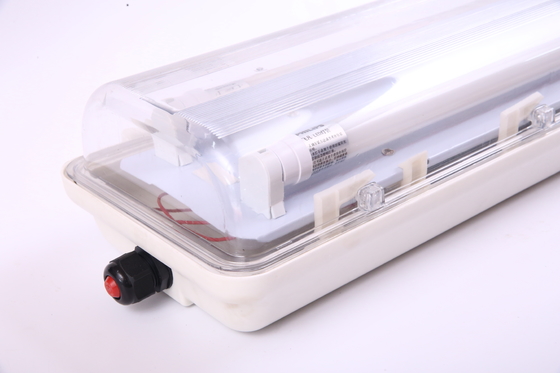

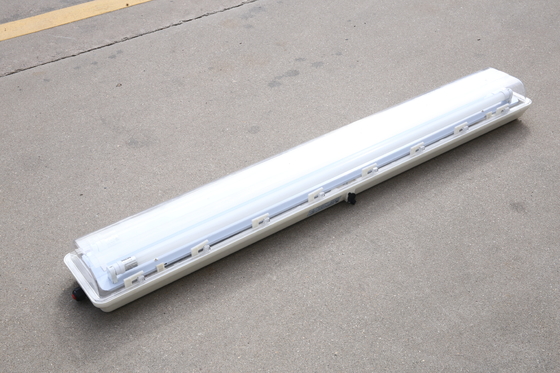

Introducing our Fluorescent Light with Explosion Protection, the perfect solution for hazardous environments. Our Explosion-Proof Fluorescent Lighting System is designed for use in Zone1 And 2, Zone 21 And 22 areas. The cable specifications are 9~14mm, making it easy to install in a variety of settings. The light is also corrosion resistant with WF2 rating, ensuring durability in harsh conditions. With multiple mounting options such as Ceiling, Wall, Flangle, Pendant, this lighting system can be easily installed wherever you need it. Additionally, the beam angle of 120-140℃ provides ample coverage for your work area.
Technical Parameters:
| Ex Marking |
Ex d e IIC T6 Gb/ DIP A21 TA |
| Classification |
Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D; Zone 1, 2 & Zone 21, 22 |
| IP Degree |
IP66 |
| Corrosion Resistant |
WF1 |
| Input Voltage |
90-305VAC/50~60HZ or 24V DC |
| Battery Back-up |
Optional, Emergency time>90min;Charging time:24h;Starting time:0.3s |
| Conduit Entries |
G 3/4" |
| Terminal |
≤2.5mm2 |
| Mounting Styles |
Pendant; Ceiling; Chain; Embedded; Wall; Stanchion |
Ordering Information
| Model NO. |
BPY-I |
BPY-II |
BPY-III |
| T8Fluorescent tube |
20Wat |
30Watt |
40Wat |
| T5 Fluorescent tube |
14Watt |
21Watt |
28Watt |
| LED tube |
8Watt |
12Watt |
18Watt |
|
Applications:
A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
| Typical applications include: |
| Oil and gas industries |
| Chemical, petrochemical |
| Pharmaceutical industries |
| Pulp and Paper |
| Waste and sewage treatment |
| Power Generation |
| Other high humidity, high dust, high temperature, vapor locations |
Packing and Shipping:
Product Packaging:
- Explosion Proof Fluorescent Light
- Mounting bracket and hardware
- Installation instructions
Shipping:
- Product will be securely packaged in a sturdy box
- Shipping carrier will be chosen based on location and fastest delivery time
- Tracking information will be provided once the product has been shipped
FAQ:
Q: What is the brand name of this explosion-proof fluorescent light?
A: The brand name of this product is Crown Extra.
Q: What is the model number of this product?
A: The model number of this product is BYS.
Q: Where is this product made?
A: This product is made in China.
Q: What is the certification of this product?
A: This product is certified by ATEX.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1SET.
Q: What is the price range of this product?
A: The price range of this product is between $50.00 and $80.00.
Q: What are the packaging details for this product?
A: The packaging details for this product are 1SET/CTN.
Q: What is the delivery time for this product?
A: The delivery time for this product is between 5 and 10 days.
Q: What are the payment terms for this product?
A: The payment terms for this product are 50%+50%.
Q: What is the supply ability of this product?
A: The supply ability of this product is 5000SET/Month.
